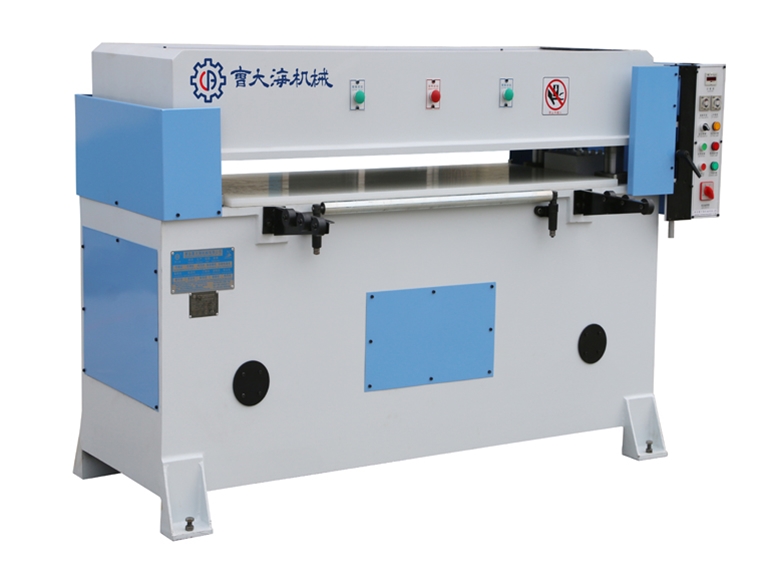

Precision four column hydraulic plane cutting Machine
Precision four column hydraulic plane cutting Machine
Main Specification
型 号 Model number
|
CDJ-400
|
最大裁断力 Maximum cutting force
|
400KN
|
电源电压 Power supply
|
3相380 V 50Hz
|
电机功率 Motor power
|
3kw
|
冲裁速度 Cutting speed
|
0.18m/s
|
上压板至工作台面距离
Distance between the upper platen and the working table surface
|
50-190mm
|
工作台面积Area of the working table
|
1600x610mm
|
液压油量Hydraulic oil quantity
|
140L
|
重量Weight
|
2300kg
|
常规尺寸Dimension
|
2250*1250*1350mm
|
